Capacity

Standard capacities

For gentle and safe conveying of bulk products, Simatek Bulk Systems A/S offers five different sizes of Universal Elevators conveying the product at a safe speed and with controlled filling of the buckets.


Elevator types  (measured @ speed: 18 m/min,  filling degree: 90%):
• Elevator type 33:    < 15,5 m3/h
• Elevator type 44:     < 21 m3/h
• Elevator type 110:   < 32 m3/h
• Elevator type 200:   < 65 m3/h
• Elevator type 460:   < 130 m3/h (measured @ speed: 21 m/min)

Capacity and speed are dependent on product specifications and choice of feeding systems

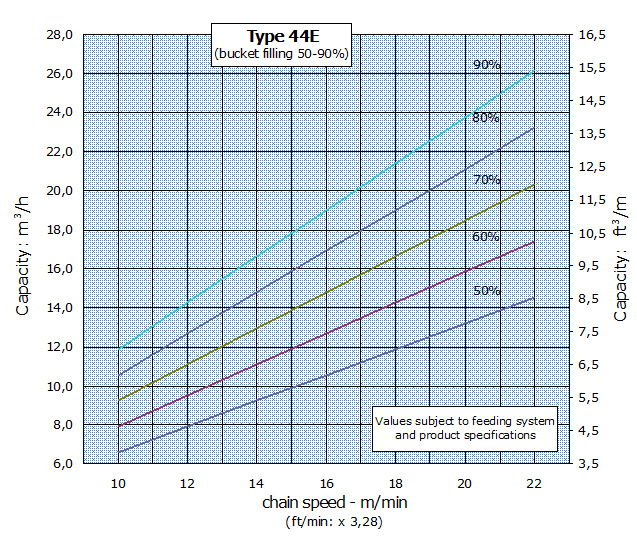

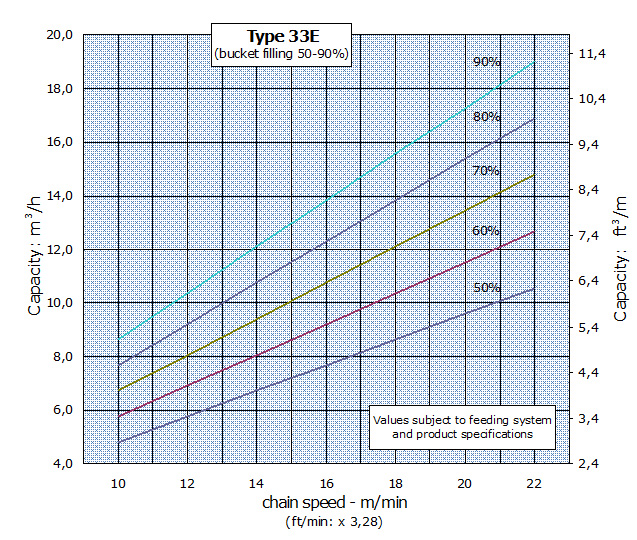

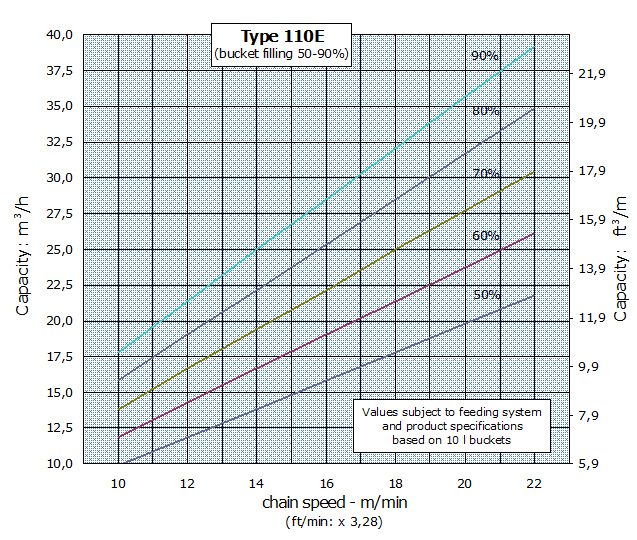

Below please find capacity diagrams for each elevator type

High capacities

The Universal Elevator type 460 is available for high capacities - up to approx 140 m³/h. This type of elevator is based on the FRB (Free Rotating Buckets) combined with the CBFS Simatek drum feeder. Elevators for higher capacities are offered in customised designs.
